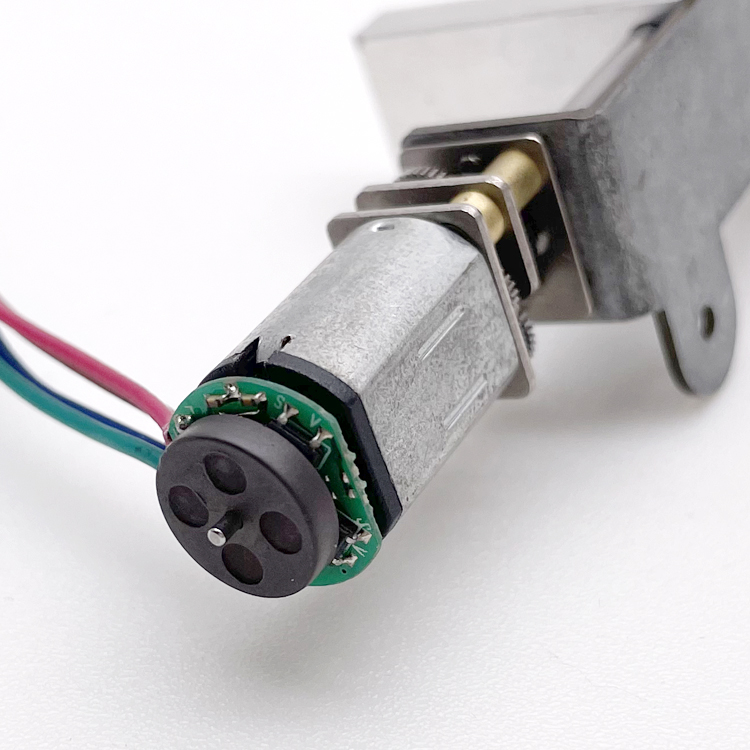

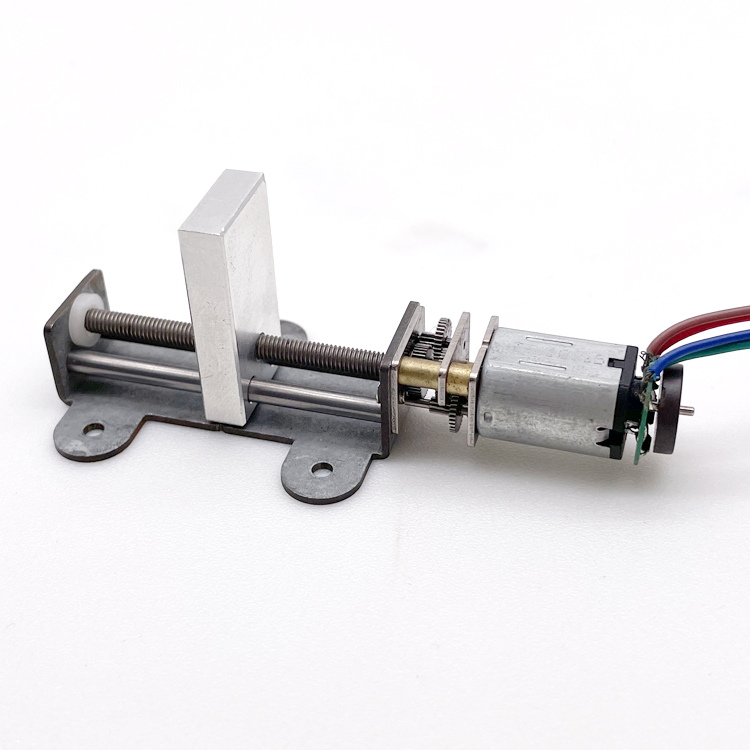

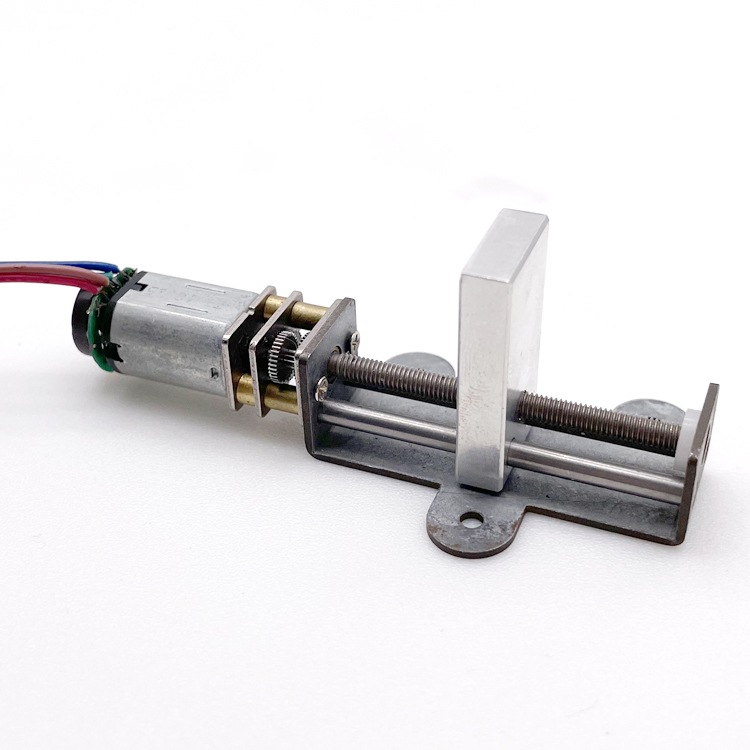

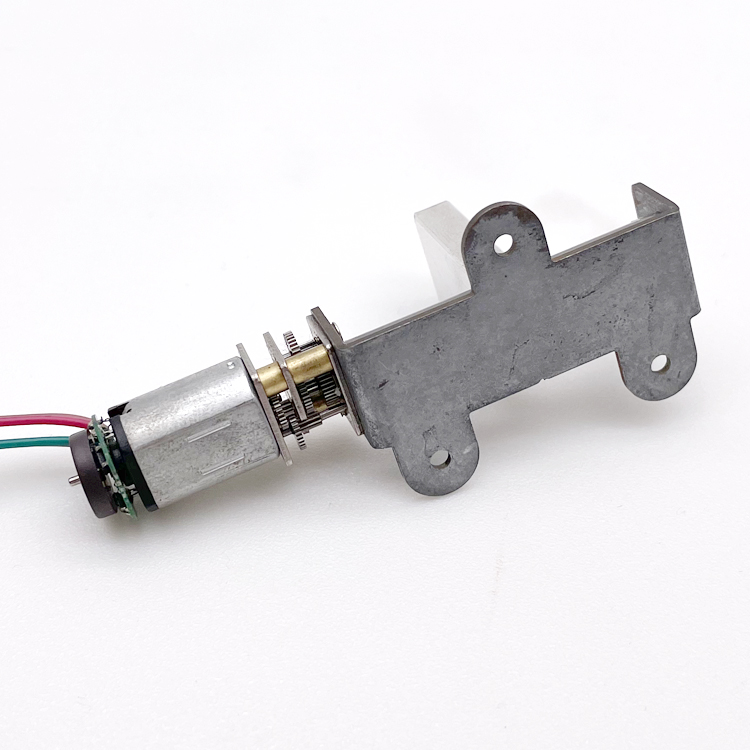

TT Motor 12v Electric Motors GM12-N20VA 1000 Ratio Spur Gear Motor for Sale

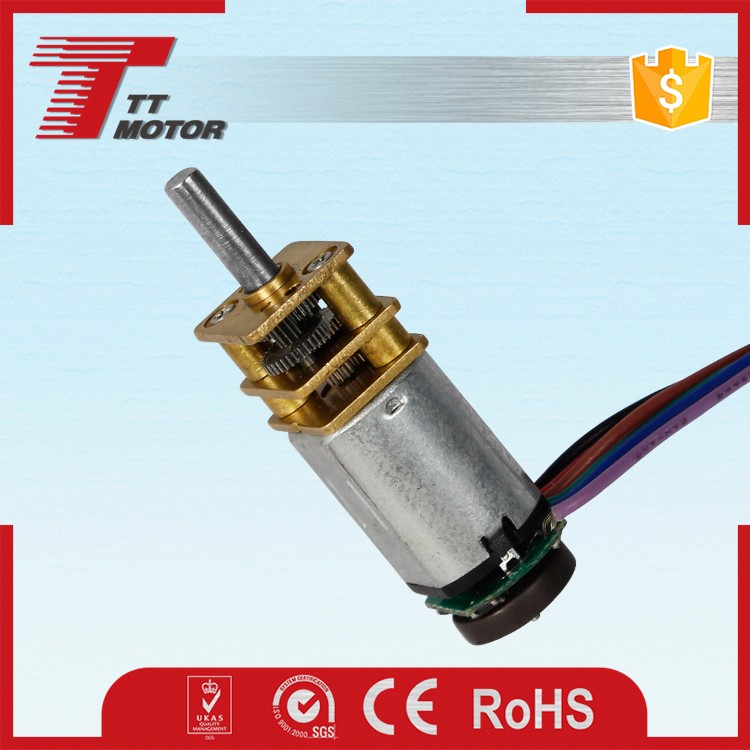

3v dc mini gear motor 12mm electric motor with encoder

⚙️ Main Features

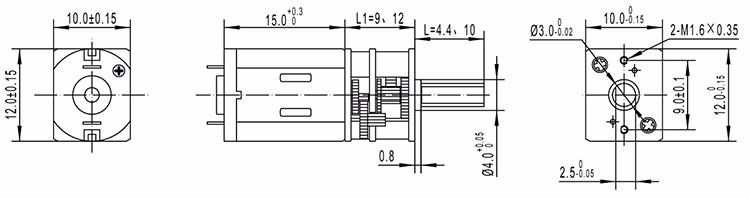

✔ 12*10 mm gearbox plus N20 & N30 permanent magnet dc motor

✔ Small size dc gear motor with low speed and big torque

✔ 12mm gear motor provide 0.1Nm torque and more reliable

✔ Suitable to small diameter, low noise and big torque application

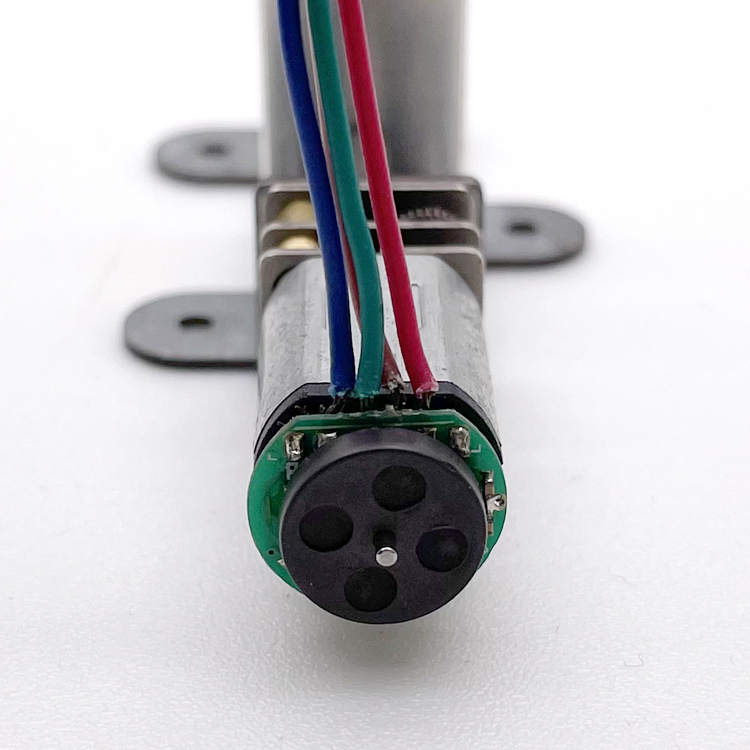

✔ DC Gear motors can match encoder, 3ppr

✔ Reduction ratio: 3, 5, 10, 20, 30, 50, 63, 100, 150, 210, 250, 298, 380, 1000

📊 Technical Specifications

Model: Motor GM12-N20VA
TFF-N20VA-13110	Rated voltage: 2.4V DC	Rated speed: 12000r/min	Output power: 0.31W
	No-load speed: 14800r/min	Rated torque: 2.5g.cm	Stall torque: 13g/cm
	No-load current: 60mA	Rated current: 200mA	Stall current: 1.20A
TFF-N20VA-09220	Rated voltage: 5V DC	Rated speed: 12200r/min	Output power: 0.31W
	No-load speed: 15000r/min	Rated torque: 2.5g.cm	Stall torque: 13g/cm
	No-load current: 30mA	Rated current: 120mA	Stall current: 0.6A
TFF-N20VA-05430	Rated voltage: 12V DC	Rated speed: 12500r/min	Output power: 0.35W
	No-load speed: 16000r/min	Rated torque: 3.0g.cm	Stall torque: 13g/cm
	No-load current: 15mA	Rated current: 60mA	Stall current: 0.25A

GM12-N20VA-13110-EN Gearbox Data

Reduction ratio	10	30	50	100	150	210	250	298	380
Length mm	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0
No-load speed rpm	1450	470	285	145	96	69	58	50	38
Rated speed rpm	1200	400	240	120	80	57	48	40	31
Rated torque kg.cm	0.015	0.05	0.07	0.15	0.22	0.31	0.37	0.45	0.5
Max. tolerance torque kg.cm	0.08	0.23	0.4	0.8	1.1	1.5	1.6	1.9	2.5

GM12-N20VA-09220-EN Gearbox Data

Reduction ratio	10	30	50	100	150	210	250	298	380
Length mm	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0
No-load speed rpm	1480	490	290	150	98	70	60	50	38
Rated speed rpm	1220	405	245	122	81	57	48	40	31
Rated torque kg.cm	0.015	0.05	0.07	0.15	0.22	0.31	0.37	0.45	0.5
Max. tolerance torque kg.cm	0.08	0.23	0.4	0.8	1.1	1.5	1.6	1.9	2.5

GM12-N20VA-05430-EN Gearbox Data

Reduction ratio	10	30	50	100	150	210	250	298	380
Length mm	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0
No-load speed rpm	1550	530	310	160	110	78	60	55	43
Rated speed rpm	1100	400	250	125	83	60	50	42	33
Rated torque kg.cm	0.02	0.05	0.08	0.18	0.27	0.37	0.45	0.5	0.5
Max. tolerance torque kg.cm	0.1	0.2	0.4	0.8	1.1	1.5	1.6	1.9	2.5

💡 Product Application

Automatic door operators, automatic energy saving bath, electrical controlled valve, oxygen machine, optical equipment, Automat cordless power tool, lighting, etc.

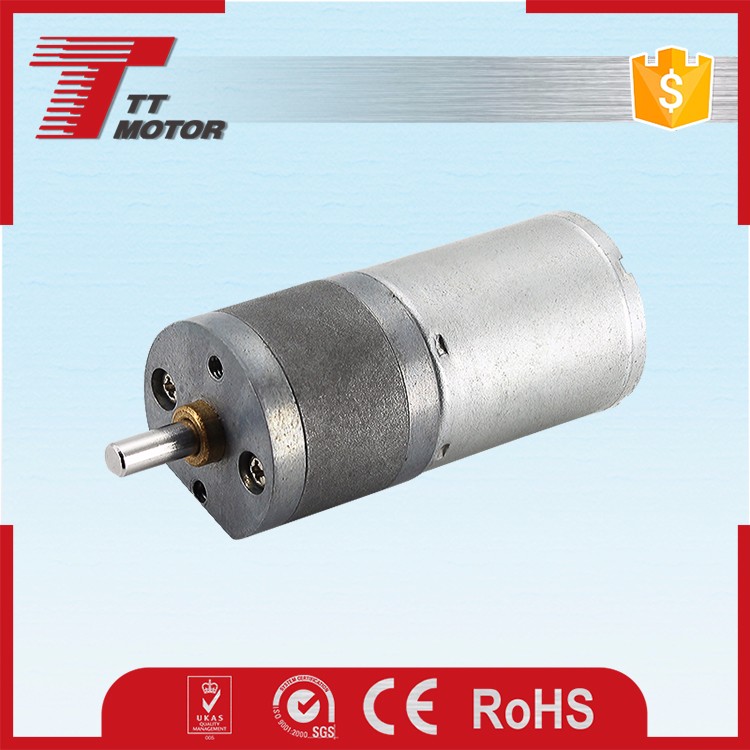

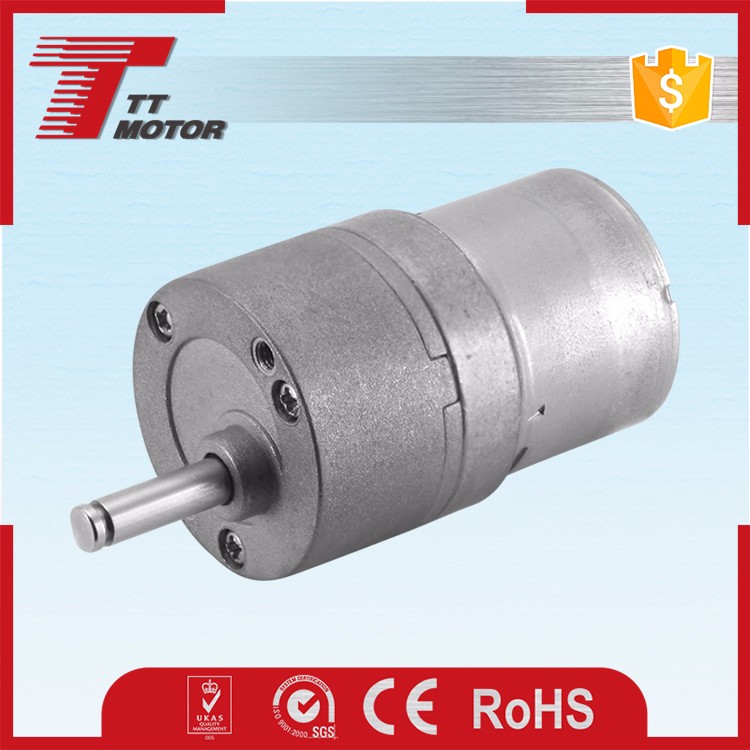

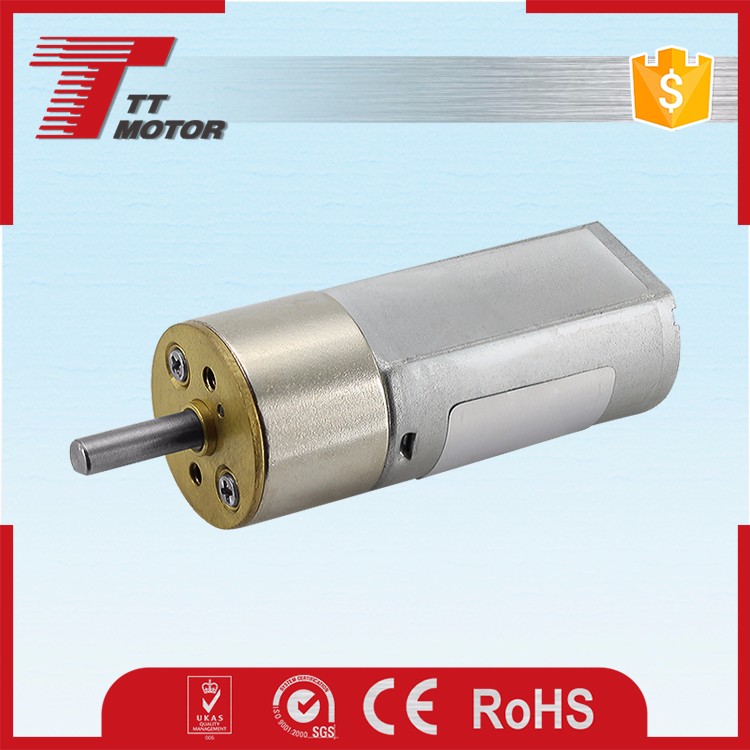

🔗 Related Products

📦 Packing & Delivery

Packaging: Single carton packing, 500 pieces per box.

Shipping Time:

DHL: 3-5 working days
UPS: 5-7 working days
TNT: 5-7 working days
FedEx: 7-9 working days
EMS: 12-15 working days
China Post: Depends on destination country
Sea Freight: Depends on destination country

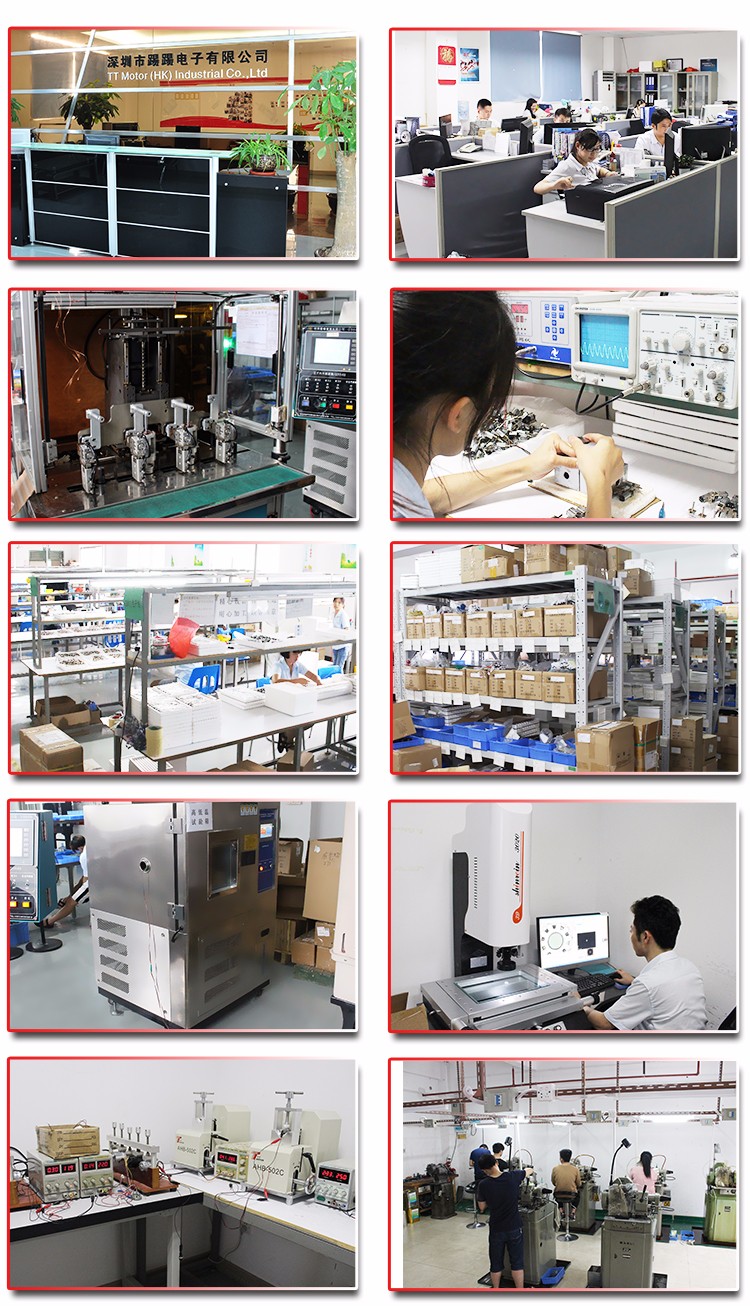

🏢 Our Company
