GM25-370CA 6v 12v Dc Electric Gear Motor for TV Broadcast Satellite Antenna

Product Description

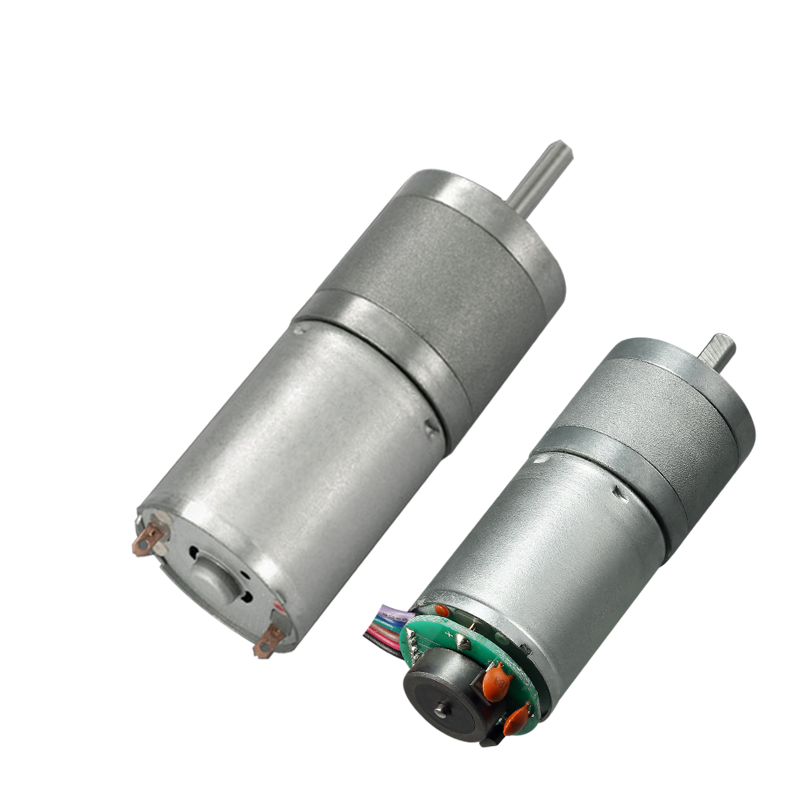

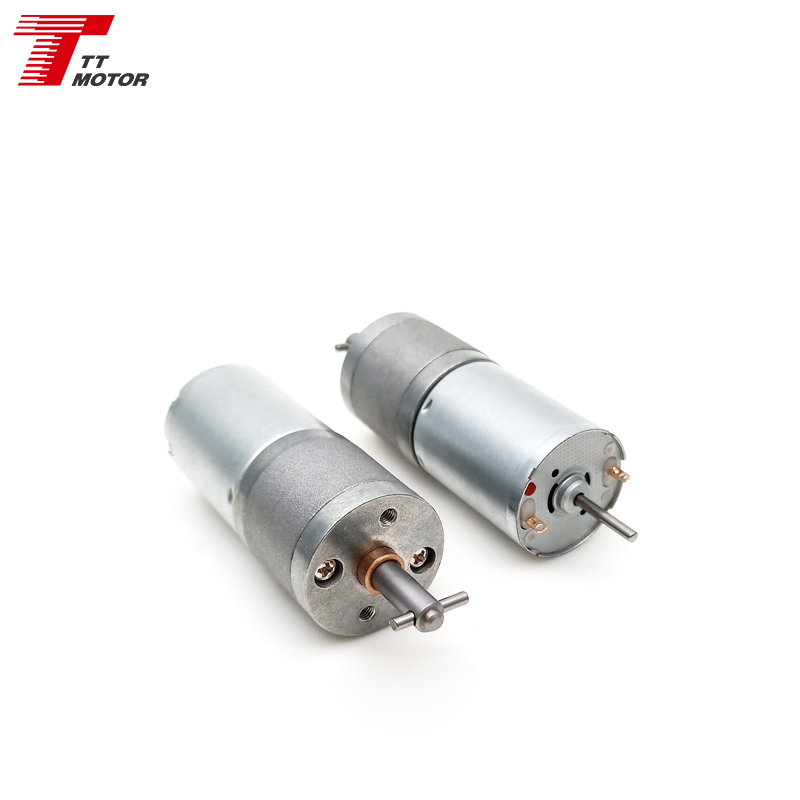

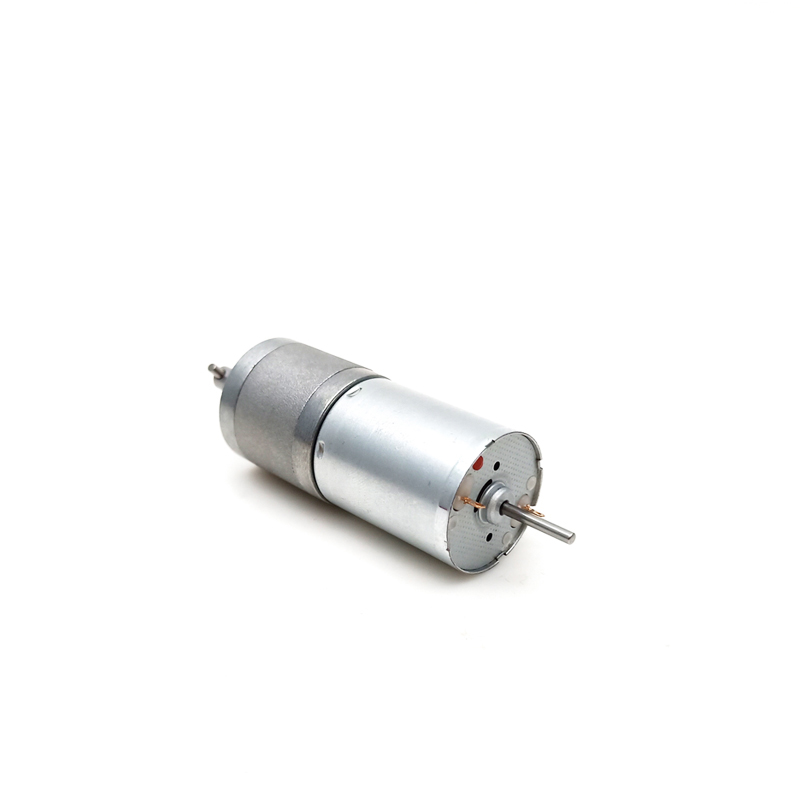

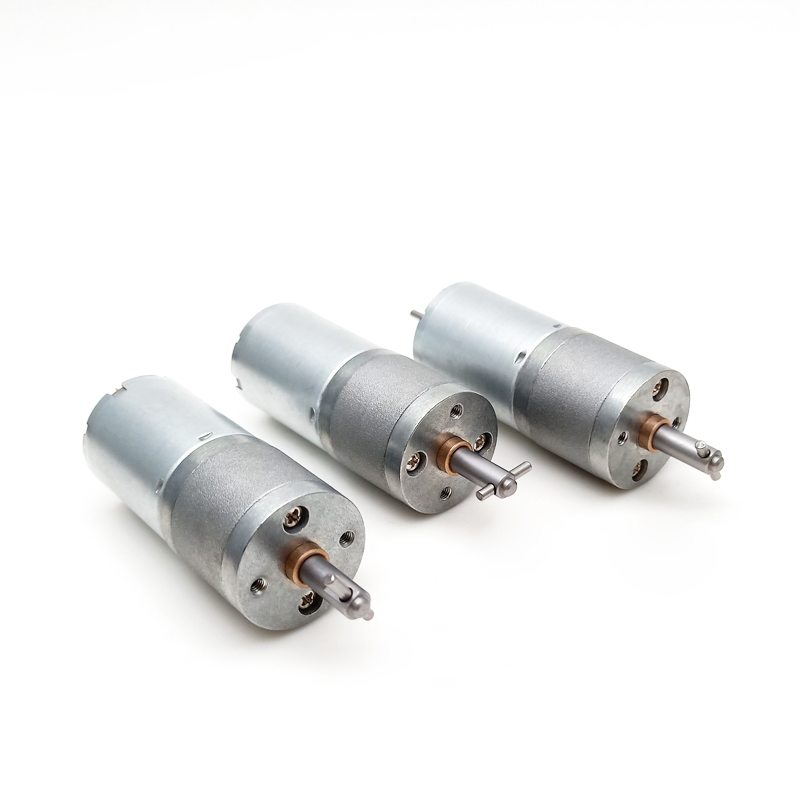

GM25-370CA 6v 12v DC Electric Gear Motor

Optimized design for TV broadcast satellite antenna systems and precision industrial automation applications.

Main Features

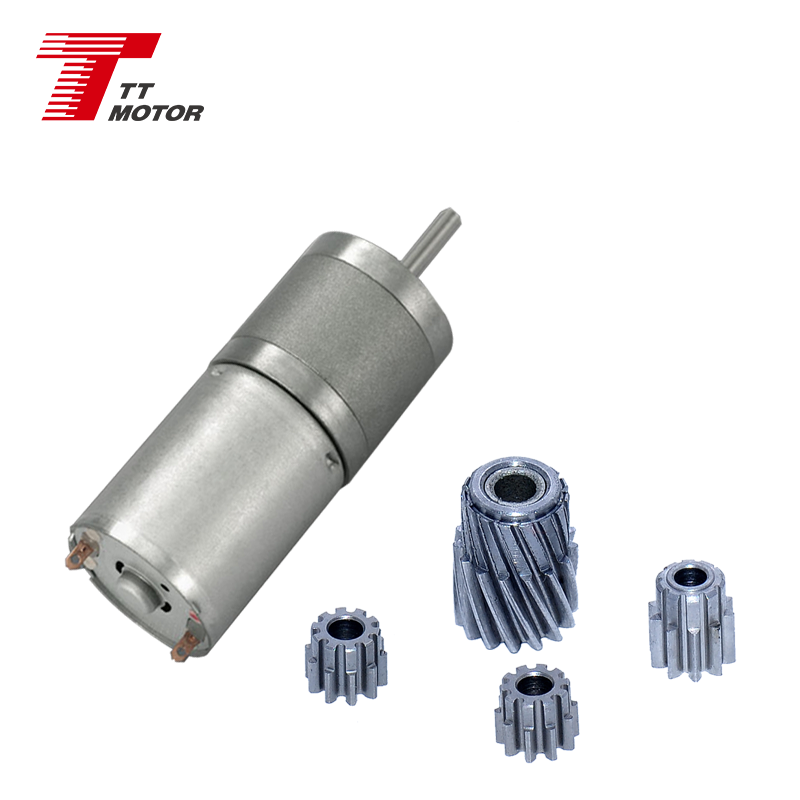

  • 25mm gearbox paired with 370 & 320 permanent magnet DC motor
  • Compact size DC gear motor offering low speed and high torque output
  • 25mm gear motor delivers 0.5Nm torque for enhanced reliability
  • Ideal for small-diameter, low-noise, and high-torque operations
  • DC gear motors can be equipped with an 11ppr encoder
  • Available Reduction Ratios: 4, 10, 21, 34, 45, 47, 78, 103, 130, 172, 227, 378, 499

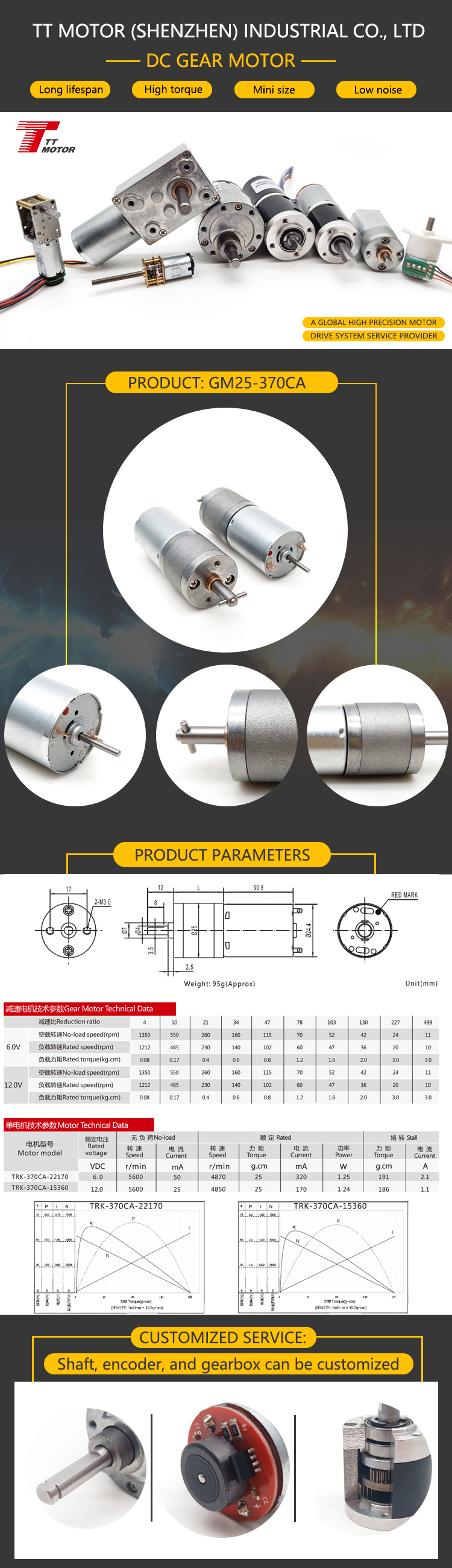

Motor Performance Specifications

Model Spec Rated Voltage No-Load Speed No-Load Current Rated Speed Rated Torque Rated Current Output Power Stall Torque Stall Current
TRK-370CA-22170 6VDC 5600 r/min 50mA 4800 r/min 24 g.cm 300mA 1.18W 186 g.cm 2.1A
TRK-370CA-15360 12VDC 5600 r/min 25mA 4800 r/min 24 g.cm 160mA 1.18W 186 g.cm 1.06A
TRK-370CA-12560 12VDC 3700 r/min 20mA 3000 r/min 20 g.cm 90mA 0.62W 125 g.cm 0.6A

Gearbox Reduction Ratio Specifications

GM25-370CA-22170-xxx
Reduction ratio 41021344778103130227
Length mm 171919212123232525
No-load speed rpm 128051024515011068504224
Rated speed rpm 120048023013710262473721
Rated torque kg.cm 0.060.150.30.50.71.11.51.72.7
Max.momentary tolerance torque kg.cm 0.451.12.33.95.210101010
GM25-370CA-15360-xxx
Reduction ratio 41021344778103130227
Length mm 171919212123232525
No-load speed rpm 128051024515011068504224
Rated speed rpm 120048023013710262473721
Rated torque kg.cm 0.060.150.30.50.71.11.51.72.7
Max.momentary tolerance torque kg.cm 0.451.12.33.95.210101010
GM25-370CA-12560-xxx
Reduction ratio 41021344778103130478
Length mm 171919212123232527
No-load speed rpm 850340165100754834277.5
Rated speed rpm 75030014586643829236.3
Rated torque kg.cm 0.050.120.260.40.60.91.21.42.5
Max.momentary tolerance torque kg.cm 0.30.751.52.63.510101010

Product Applications

Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
Others Applications
Business Machines Vending Machines Printers ATM, Copiers and Scanners
Camera and Optical Video Cameras Projectors
Lawn and Garden Lawn Mowers Snow Blowers Trimmers, Leaf Blowers

Certifications

ISO9001, SGS, National high-tech enterprises, etc.

Our Manufacturing Facility

Our enterprise has been specializing in micro motors, gear motors and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances, tools, and many others. Our products are dependable, long-lasting, and backed by years of experience. We export 98% of our output worldwide.

By leveraging our hard-won reputation for honesty, dependability, and quality, we aim to continue as a pioneer in sales overseas by seeking global partners. If your company is an end-user of micro-motors, a distributor, or an agent, please contact us. We look forward to being able to work together with you in the near future.

Our Customers & Feedback

Trusted by global enterprises including NIKE, FLEXTRONICS, STANLEY, and others. Providing excellent quality, competitive pricing, prompt service, and on-time delivery.

Packing & Delivery

Standard Packaging Details: Safely packed and secured to ensure maximum protection during transit.
Estimated Shipping Time:
  • DHL: 3-5 working days
  • UPS: 5-7 working days
  • TNT: 5-7 working days
  • FedEx: 7-9 working days
  • EMS: 12-15 working days
  • China Post: Depends on destination country
  • Sea Freight: Depends on destination country

Frequently Asked Questions

Q1 How to order?
Send us an inquiry → Receive our quotation → Negotiate details → Confirm the sample → Sign contract/deposit → Mass production → Cargo ready → Balance/delivery → Further cooperation.
Q2 How about Sample order?
Samples are available for you. Please contact us for details. Once we charge you the sample fee, rest assured that it will be refunded when you place a formal production order.
Q3 Which shipping way is available?
DHL, UPS, FedEx, TNT, EMS, China Post, and Sea Freight are available. Other shipping options can also be arranged, please contact us to coordinate alternative transport methods.
Q4 How long is the delivery (production) and shipping time?
Delivery time depends on the quantity you order. Mass production usually takes 15-25 working days.
Q5 My package has missing products. What can I do?
Please contact our support team immediately, and we will verify your order against the package contents. We apologize for any inconvenience caused and will resolve the issue promptly.
Q6 How to confirm the payment?
We accept payment by T/T and PayPal. Other payment options may also be accepted; please contact us before finalizing transaction arrangements. A 30-50% deposit option is available, with the remaining balance due before shipment.
