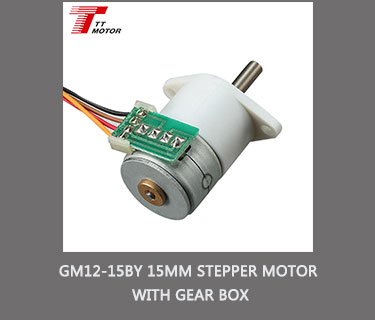

5V Geared DC Motor with Encoder Mini Stepper Motor
Main Features
- 12*10mm gearbox plus 15mm stepping motor
- Small size dc gear motor with low speed and big torque
- 12mm gear motor provide 0.05Nm torque and more reliable
- Suitable to small diameter, low noise and big torque application
- Reduction ratio: 3, 5, 10, 20, 30, 50, 60, 100, 150, 210, 250, 298, 380
Motor Parameters (GM12-15BY)
| Model |
Electrical Specifications |
Mechanical Specifications |
| GM12-15BY-30 |
Rated voltage: 5VDC
Resistance: 10Ω
No. of Phase: 2
Current: 500mA |
Holding Torque: 500g.cm
Step Angle: 18°
Gear Ratio: 1/30
Pull in Rate: 800pps |
| GM12-15BY-50 |
Rated voltage: 5VDC
Resistance: 10Ω
No. of Phase: 2
Current: 500mA |
Holding Torque: 700g.cm
Step Angle: 18°
Gear Ratio: 1/50
Pull in Rate: 850pps |
| GM12-15BY-110 |
Rated voltage: 5VDC
Resistance: 10Ω
No. of Phase: 2
Current: 500mA |
Holding Torque: 1050g.cm
Step Angle: 18°
Gear Ratio: 1/110
Pull in Rate: 850pps |
Product Application
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
Other Applications
| Industry Sector |
Applications |
| Business Machines |
Vending Machines |
Printers |
ATM |
Copiers and Scanners |
| Camera & Optical |
Video |
Cameras |
Projectors |
- |
| Lawn & Garden |
Lawn Mowers |
Snow Blowers |
Trimmers |
Leaf Blowers |
Certifications
ISO9001, SGS, National high-tech enterprises, etc.
Manufacturing & Industry Expertise
We have been specializing in micro motors, gear motors and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances, tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide. By leveraging our hard-won reputation for honesty, dependability and quality, we aim to continue as a pioneer in the sales overseas by seeking global partners.
Our Valued Partners
Partnering with leading brands including NIKE, FLEXTRONICS, STANLEY, etc.
Packing & Delivery
Standard Export Packing Layout:
Shipping & Delivery Times
- DHL: 3-5 working days
- UPS: 5-7 working days
- TNT: 5-7 working days
- FedEx: 7-9 working days
- EMS: 12-15 working days
- China Post: Depends on target country
- Sea Freight: Depends on target country
Customer Feedback
Excellent quality, better price, good service, and on-time delivery.
Frequently Asked Questions
QHow to order?
Send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation
QHow about sample orders?
Samples are available for evaluation. Please contact our support team for specifics. The sample fee will be fully refunded once a formal mass production order is placed.
QWhich shipping options are available?
We support shipping via DHL, UPS, FedEx, TNT, EMS, China Post, and Sea Freight. Other shipping methods can be arranged upon request; please communicate your requirements to our team.
QHow long does production and shipping take?
Production delivery time depends heavily on order volume. Generally, standard orders take between 15-25 working days.
QWhat should I do if my package has missing products?
Please reach out immediately to our customer support team. We will verify the shipment contents against your order database. We apologize for any packing discrepancies.
QHow is payment confirmed?
We accept payments via T/T and PayPal, with other payment options available upon prior negotiation. Standard terms allow for a 30-50% deposit, with the remaining balance cleared prior to final shipping.
