Product Description

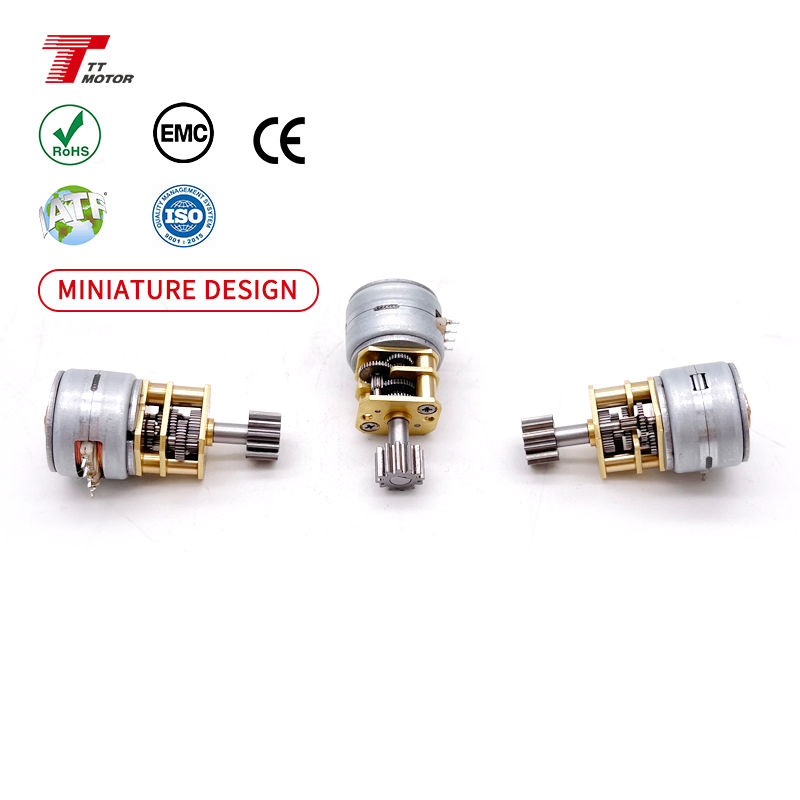

GM12-15BY 15mm dc gear motor 5v

Main Features

12*10mm gearbox plus 15mm dc gear motor 5v
Small size dc gear motor with low speed and big torque
12mm gear motor provide 0.05Nm torque and more reliable
Suitable to small diameter, low noise and big torque application
Reduction ratio: 3, 5, 10, 20, 30, 50, 60, 100, 150, 210, 250, 298, 380

Technical Specifications

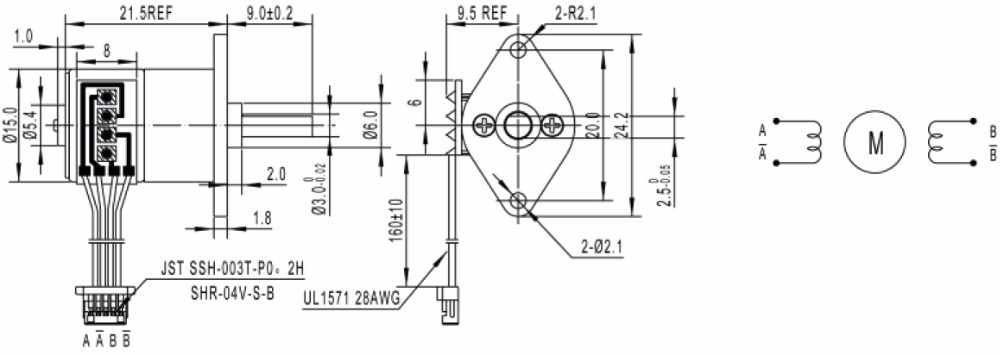

Motor GM12-15BY Specifications
GM12-15BY-30	Rated voltage: 5VDC	Resistance: 10Ω
	No.of Phase: 2	Holding Torque: 500g.cm
	Step Angle: 18°	current: 500mA
	Gear Ratio: 1/30	Pull in Rate: 800pps
GM12-15BY-50	Rated voltage: 5VDC	Resistance: 10Ω
	No.of Phase: 2	Holding Torque: 700g.cm
	Step Angle: 18°	current: 500mA
	Gear Ratio: 1/50	Pull in Rate: 850pps
GM12-15BY-110	Rated voltage: 5VDC	Resistance: 10Ω
	No.of Phase: 2	Holding Torque: 1050g.cm
	Step Angle: 18°	current: 500mA
	Gear Ratio: 1/110	Pull in Rate: 850pps

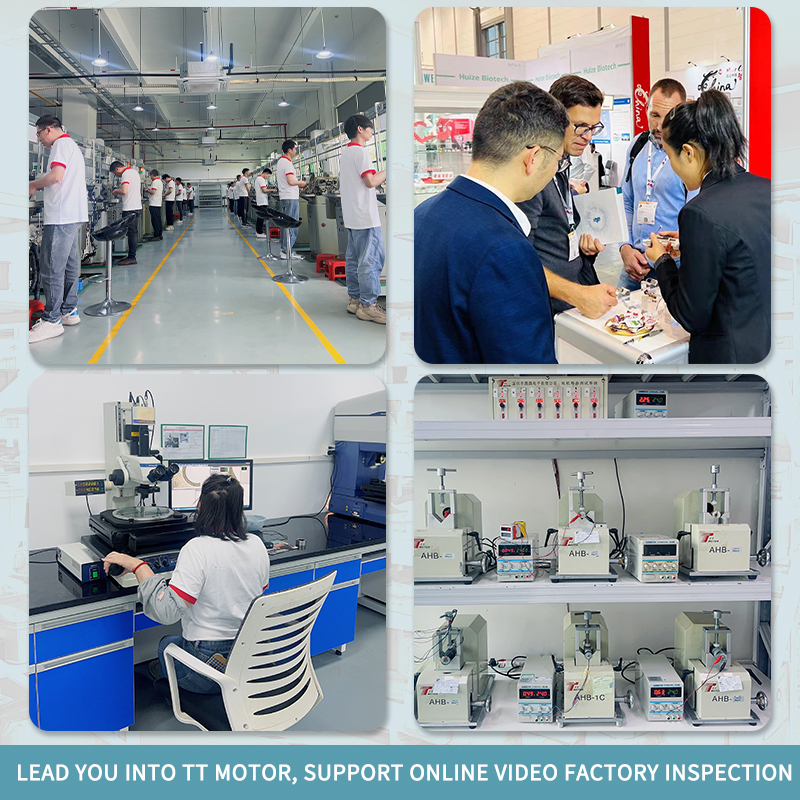

Manufacturing Facilities & Quality Control

Frequently Asked Questions

What are the main applications for the GM12-15BY DC gear motor?

This compact 15mm DC gear motor is widely used in applications requiring a small diameter, low operating noise, and high torque. Key industries include robotics, medical equipment, smart home appliances, automated locks, and precision control systems.

What reduction ratios does the GM12-15BY support?

The motor supports a wide selection of reduction ratios to accommodate different torque and speed requirements, including: 3, 5, 10, 20, 30, 50, 60, 100, 150, 210, 250, 298, and 380.

What voltage is standard for this miniature gear motor?

The standard rated voltage for this micro stepping gear motor is 5VDC, which ensures efficient power consumption while delivering stable torque output.

Does the gearbox structure provide reliable torque?

Yes, despite the compact 12mm gearbox dimensions, the system delivers up to 0.05Nm torque, providing highly stable, reliable, and durable rotation for precision gear mechanisms.

What is the step angle and phase configuration?

This motor features a 2-phase configuration and an 18-degree step angle, which provides precise control parameters for positioning tasks when geared down.
