Product Description

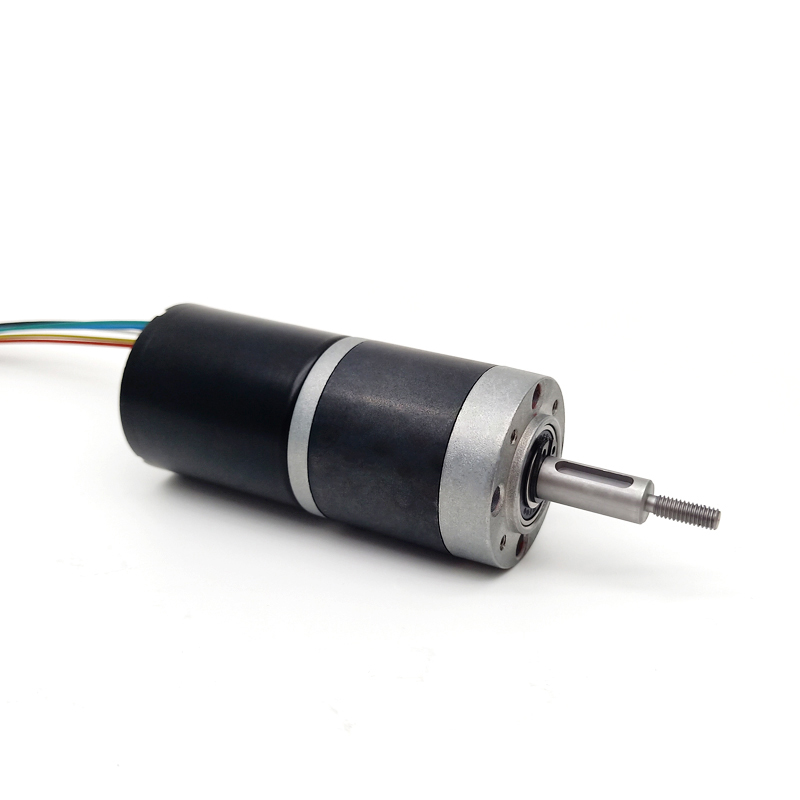

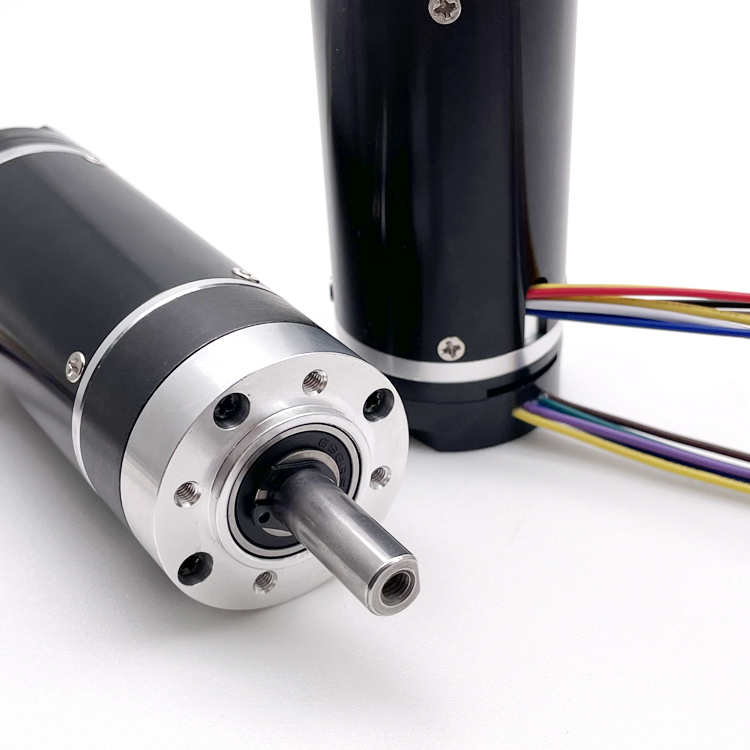

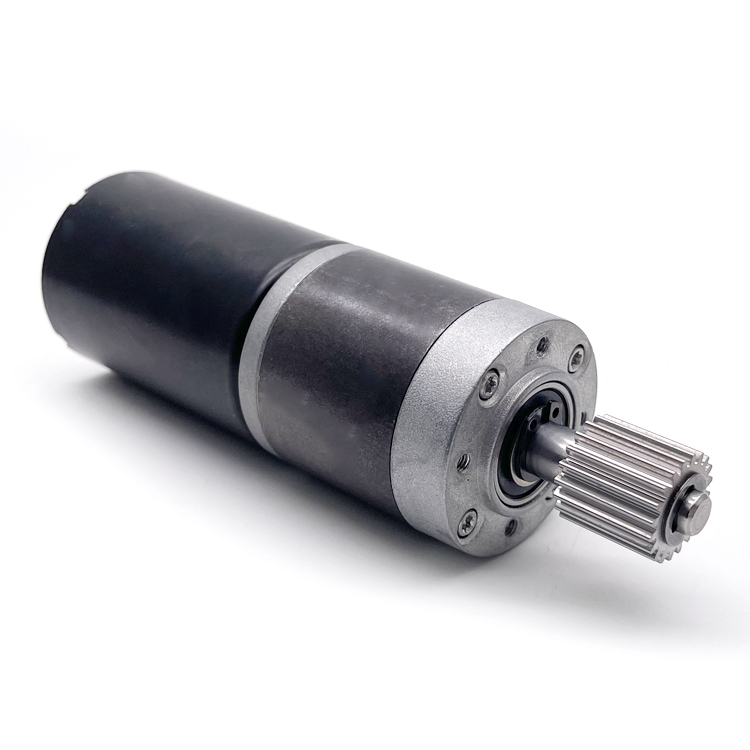

High Torque Low RPM 12V 24V Brushless DC Gear Motor

Main Features

36mm Planetary reducer plus TEC3650 & 3640 brushless motor
Small size dc gear motor with low speed and big torque
36mm gear motor provide 3.0Nm torque max and more reliable
Suitable for small diameter, low noise and big torque application
Reduction ratio: 4, 14, 19, 27, 51, 71, 100, 139, 189, 264, 369, 516, 720

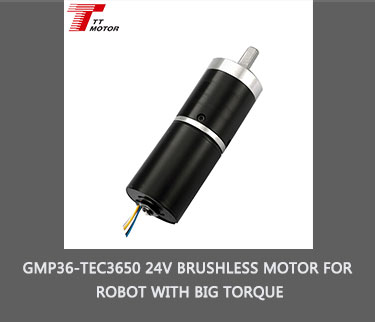

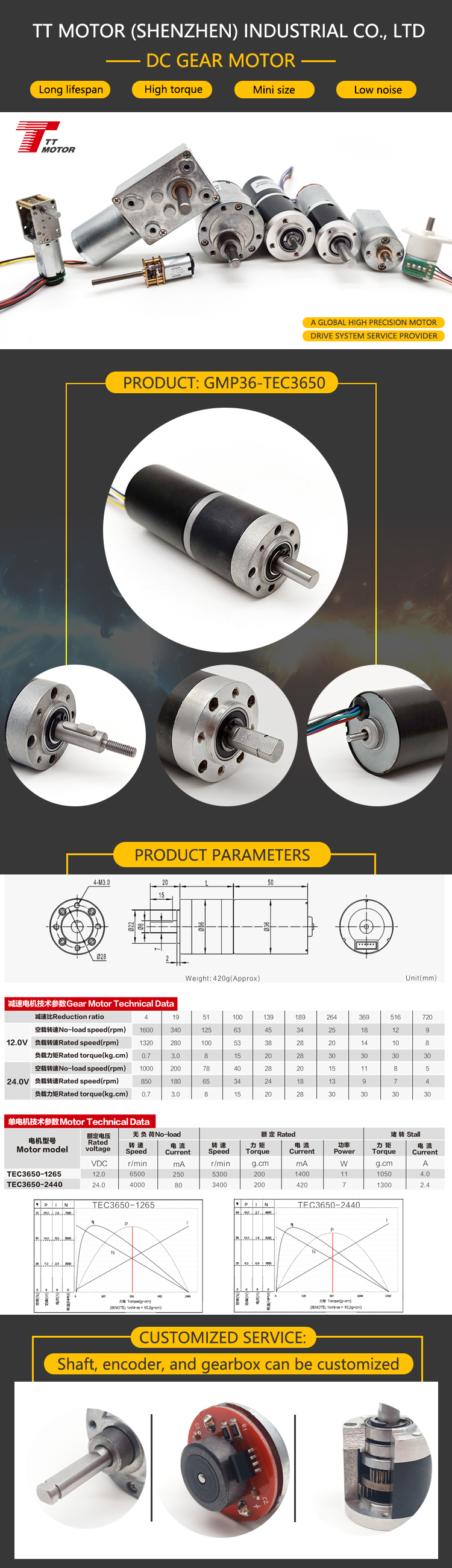

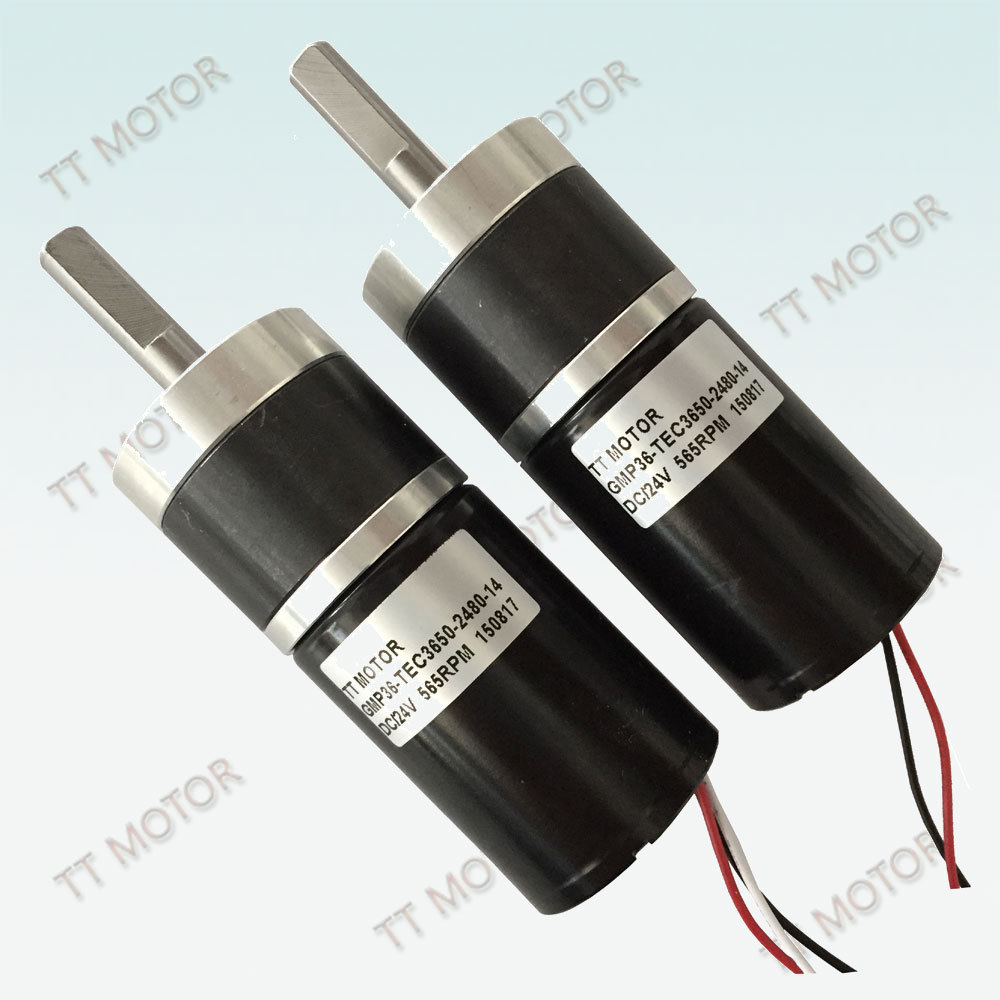

Specifications (Model: GMP36-TEC3650)

Model	Specifications	Specifications (Cont.)	Electrical Specs
TEC3650-2465	Rated voltage: 24VDC	Rated speed: 5400r/min	Output power: 11.5W
	No-load speed: 6500r/min	Rated torque: 200g.cm	Stall torque: 1150g.cm
	No-load current: 200mA	Rated current: 1000mA	Stall current: 2.0A
TEC3650-2440	Rated voltage: 24VDC	Rated speed: 3200r/min	Output power: 6.6W
	No-load speed: 4000r/min	Rated torque: 200g.cm	Stall torque: 1000g.cm
	No-load current: 120mA	Rated current: 600mA	Stall current: 2.0A
TEC3650-1245	Rated voltage: 12VDC	Rated speed: 3500r/min	Output power: 8.3W
	No-load speed: 4500r/min	Rated torque: 230g.cm	Stall torque: 820g.cm
	No-load current: 150mA	Rated current: 880mA	Stall current: 2.5A

GMP36-TEC3650-2440 Performance Data

Reduction ratio	4	19	51	100	139	189	264	369	516
Length mm	26	33.5	40.5	40.5	40.5	47.5	47.5	47.5	47.5
No-load speed rpm	950	200	75	40	28	20	15	10	7.5
Rated speed rpm	750	160	60	30	22	16	12	8	6
Rated torque kg.cm	0.6	2.7	6.0	12	16.6	22.5	30	30	30
Max. momentary tolerance torque kg.cm	3.2	13	31	60	70	70	70	70	70

GMP36-TEC3650-2465 Performance Data

Reduction ratio	4	19	51	100	139	189	264	369	516
Length mm	26	33.5	40.5	40.5	40.5	47.5	47.5	47.5	47.5
No-load speed rpm	1600	340	125	65	45	33	23	17	12
Rated speed rpm	1300	280	100	53	38	28	20	14.5	12
Rated torque kg.cm	0.6	2.7	6.0	12	16.6	22.5	30	30	30
Max. momentary tolerance torque kg.cm	3.7	15	35	69	70	70	70	70	70

GMP36-TEC3650-1245-x Performance Data

Reduction ratio	4	19	51	100	139	189	264	369	516
Length mm	26	33.5	40.5	40.5	40.5	47.5	47.5	47.5	47.5
No-load speed rpm	1050	230	85	44	32	23	17	12	9
Rated speed rpm	875	185	68	35	25	18	13	10	57
Rated torque kg.cm	0.7	3.0	7.0	14	19	24	30	30	30
Max. momentary tolerance torque kg.cm	2.6	11	25	50	70	70	70	70	70

Product Application

Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.

Other Applications

Category	Applications
Business Machines	Vending Machines	Printers	ATM	Copiers and Scanners
Camera and Optical	Video	Cameras	Projectors
Lawn and Garden	Lawn Mowers	Snow Blowers	Trimmers	Leaf Blowers

Certifications

ISO9001, SGS, National high-tech enterprises, etc.
