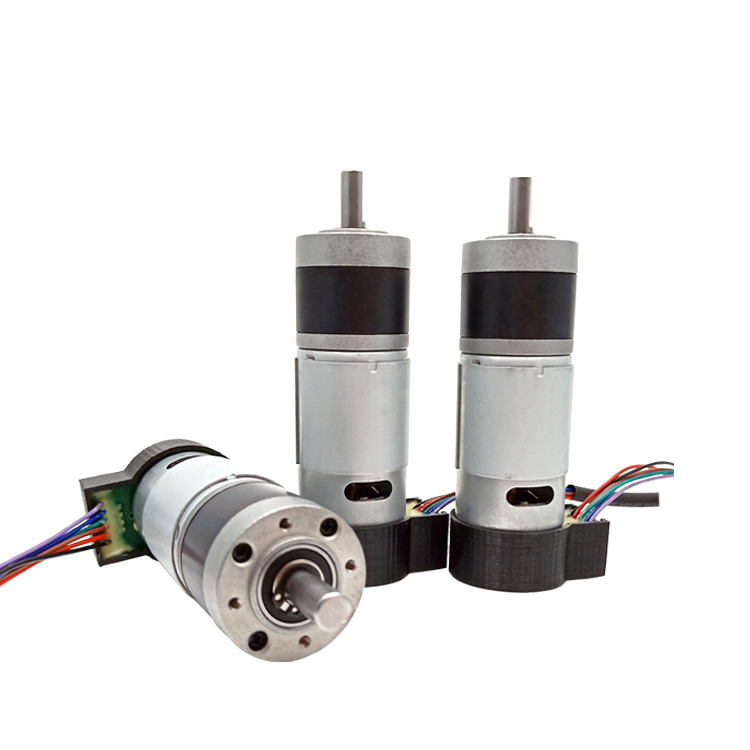

GMP36-555PM-EN 12 volt 24 volt electric dc geared motor with encoder
Main Features

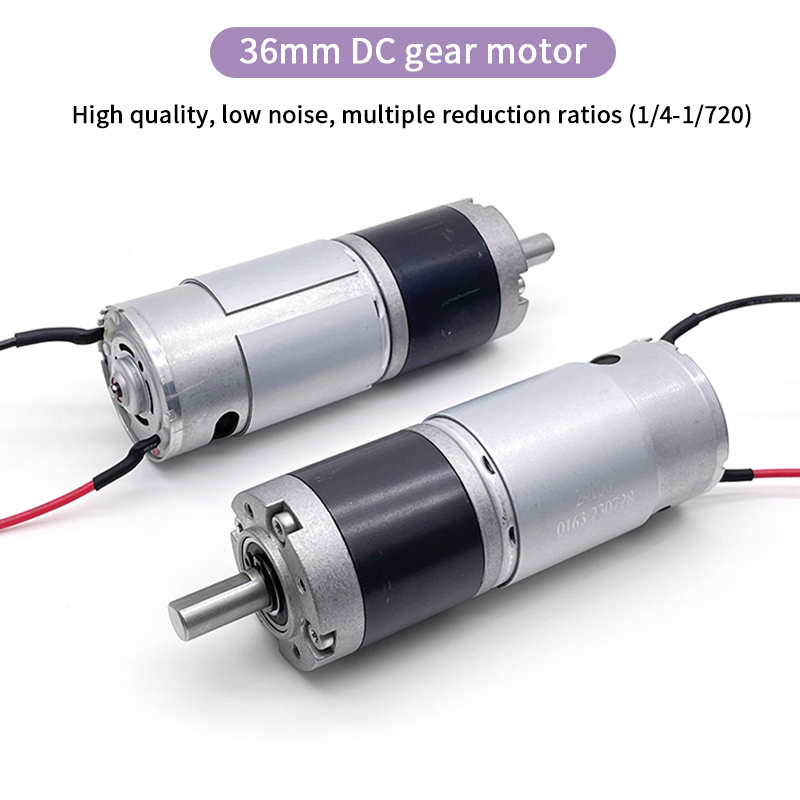

- 36mm Planetary reducer plus 3530,5 series of carbon brush motor and TEC3650 & 3640 brushless motor
- Small size dc gear motor with low speed and big torque
- 36mm gear motor provide 3.0Nm torque and more reliable
- Suitable to small diameter, low noise and big torque application

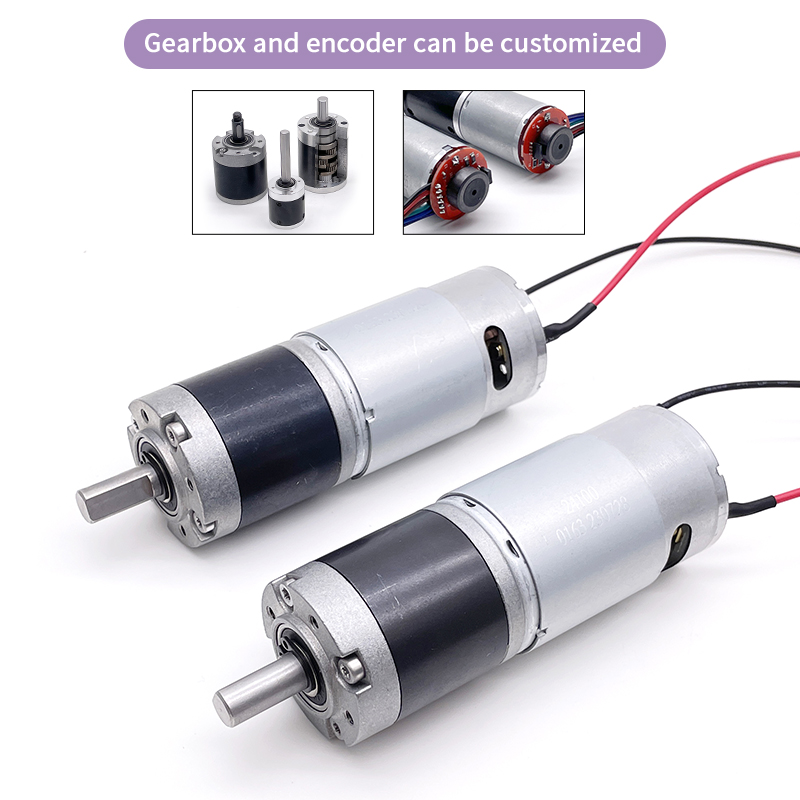

- Dc Gear motors can match encoder, 11pr
- Reduction ratio: 4, 14, 19, 51, 71, 100, 139, 189, 264, 369, 516, 720

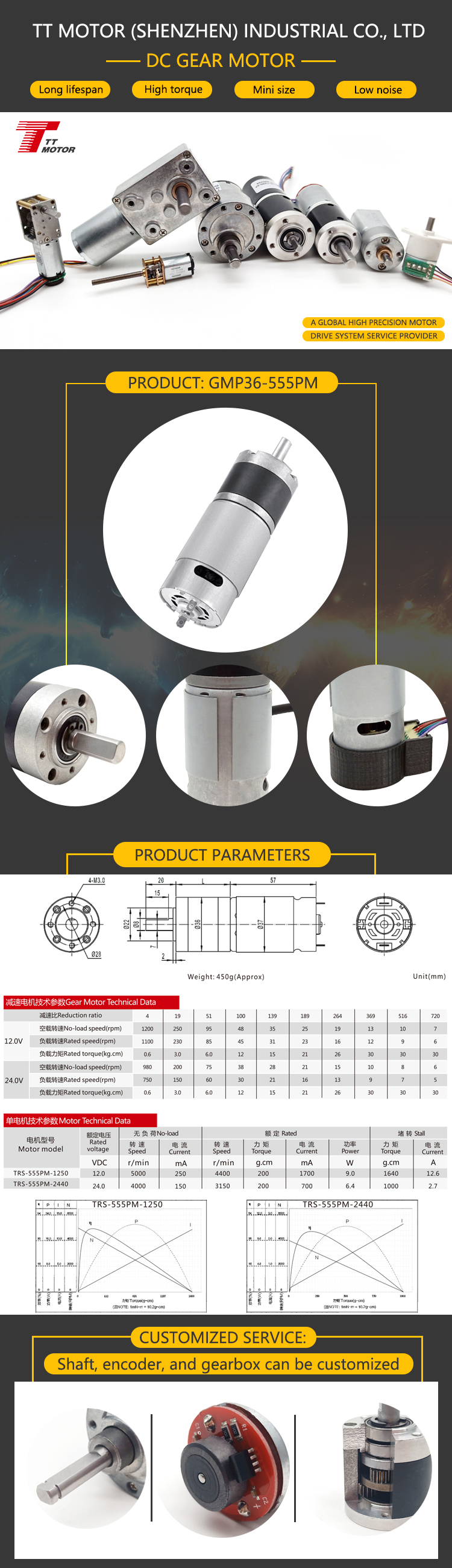

Specifications
| Model: Gear Motor GMP36-555PM |
| TTRS-555PM-1233 |
Rated voltage: 12VDC |
Rated speed: 2800r/min |
Output power: 5.7W |
| No-load speed: 3300r/min |
Rated torque: 200g.cm |
Stall torque: 1150g.cm |
| No-load current: 200mA |
Rated current: 1000mA |
Stall current: 5.5A |
| TTRS-555PM-1260 |
Rated voltage: 12VDC |
Rated speed: 5250r/min |
Output power: 16W |
| No-load speed: 6000r/min |
Rated torque: 290g.cm |
Stall torque: 2200g.cm |
| No-load current: 300mA |
Rated current: 2400mA |
Stall current: 15.0A |
| TTRS-555PM-2440 |
Rated voltage: 24VDC |
Rated speed: 3150r/min |
Output power: 6.4W |
| No-load speed: 2400r/min |
Rated torque: 200g.cm |
Stall torque: 1000g.cm |
| No-load current: 150mA |
Rated current: 700mA |
Stall current: 2.7A |
Detailed Parameters by Model
GMP36-555PM-1233-xxx
| Reduction ratio |
4 |
19 |
51 |
100 |
139 |
189 |
264 |
369 |
516 |
| Length mm |
26 |
33.5 |
33.5 |
40.5 |
40.5 |
47.5 |
47.5 |
47.5 |
47.5 |
| No-load speed rpm |
750 |
160 |
60 |
32 |
23 |
17 |
12 |
9 |
6 |
| Rated speed rpm |
700 |
150 |
55 |
28 |
20 |
15 |
11 |
8 |
5.5 |
| Rated torque kg.cm |
0.64 |
2.7 |
6 |
12 |
15 |
21 |
26 |
30 |
30 |
| Max.momentary tolerance torque kg.cm |
3.7 |
15 |
35 |
70 |
70 |
70 |
70 |
70 |
70 |
GMP36-555PM-1260-xxx
| Reduction ratio |
4 |
19 |
51 |
100 |
139 |
189 |
264 |
369 |
516 |
| Length mm |
26 |
33.5 |
33.5 |
40.5 |
40.5 |
47.5 |
47.5 |
47.5 |
47.5 |
| No-load speed rpm |
1400 |
300 |
110 |
55 |
42 |
32 |
23 |
16 |
11.5 |
| Rated speed rpm |
1300 |
275 |
100 |
50 |
38 |
28 |
20 |
15 |
10.5 |
| Rated torque kg.cm |
0.9 |
3.8 |
9 |
18 |
22 |
30 |
30 |
30 |
30 |
| Max.momentary tolerance torque kg.cm |
5 |
20 |
60 |
60 |
60 |
70 |
70 |
70 |
70 |
GMP36-555PM-2440-xxx
| Reduction ratio |
4 |
19 |
51 |
100 |
139 |
189 |
264 |
369 |
516 |
| Length mm |
26 |
33.5 |
33.5 |
40.5 |
40.5 |
47.5 |
47.5 |
47.5 |
47.5 |
| No-load speed rpm |
980 |
200 |
75 |
38 |
28 |
21 |
15 |
10 |
7.5 |
| Rated speed rpm |
750 |
155 |
60 |
30 |
21 |
16 |
13 |
9.5 |
7 |
| Rated torque kg.cm |
0.64 |
2.7 |
6 |
12 |
15 |
21 |
26 |
30 |
30 |
| Max.momentary tolerance torque kg.cm |
3.2 |
13 |
25 |
50 |
60 |
70 |
70 |
70 |
70 |

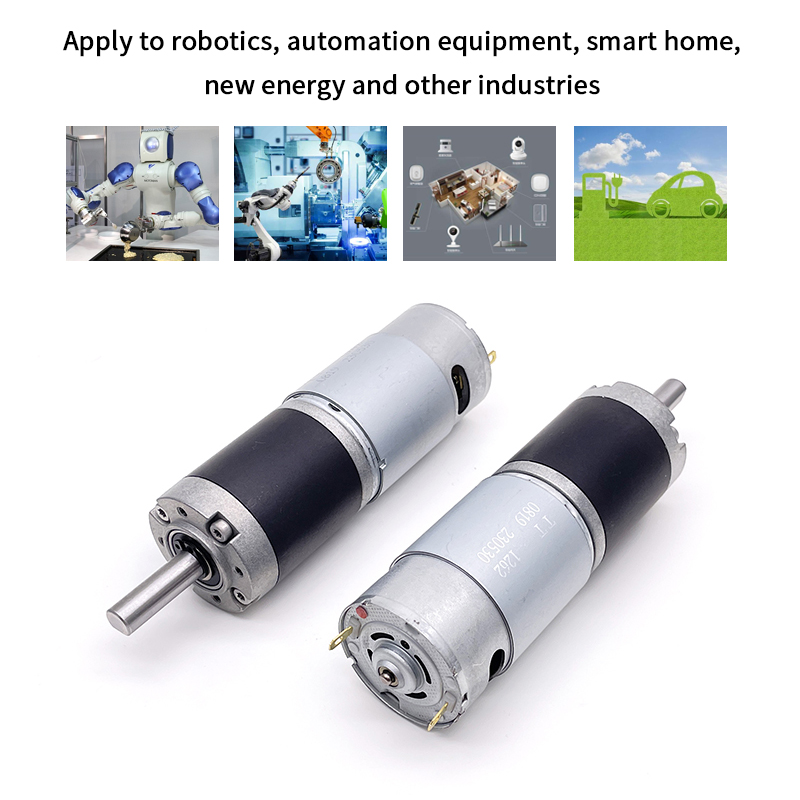

Product Application
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
Other Applications
| Category |
Applications |
| Business Machines |
Vending Machines |
Printers |
ATM |
Copiers and Scanners |
| Camera and Optical |
Video |
Cameras |
Projectors |
- |
| Lawn and Garden |
Lawn Mowers |
Snow Blowers |
Trimmers |
Leaf Blowers |
Certifications
ISO9001, SGS, National high-tech enterprises, etc.
